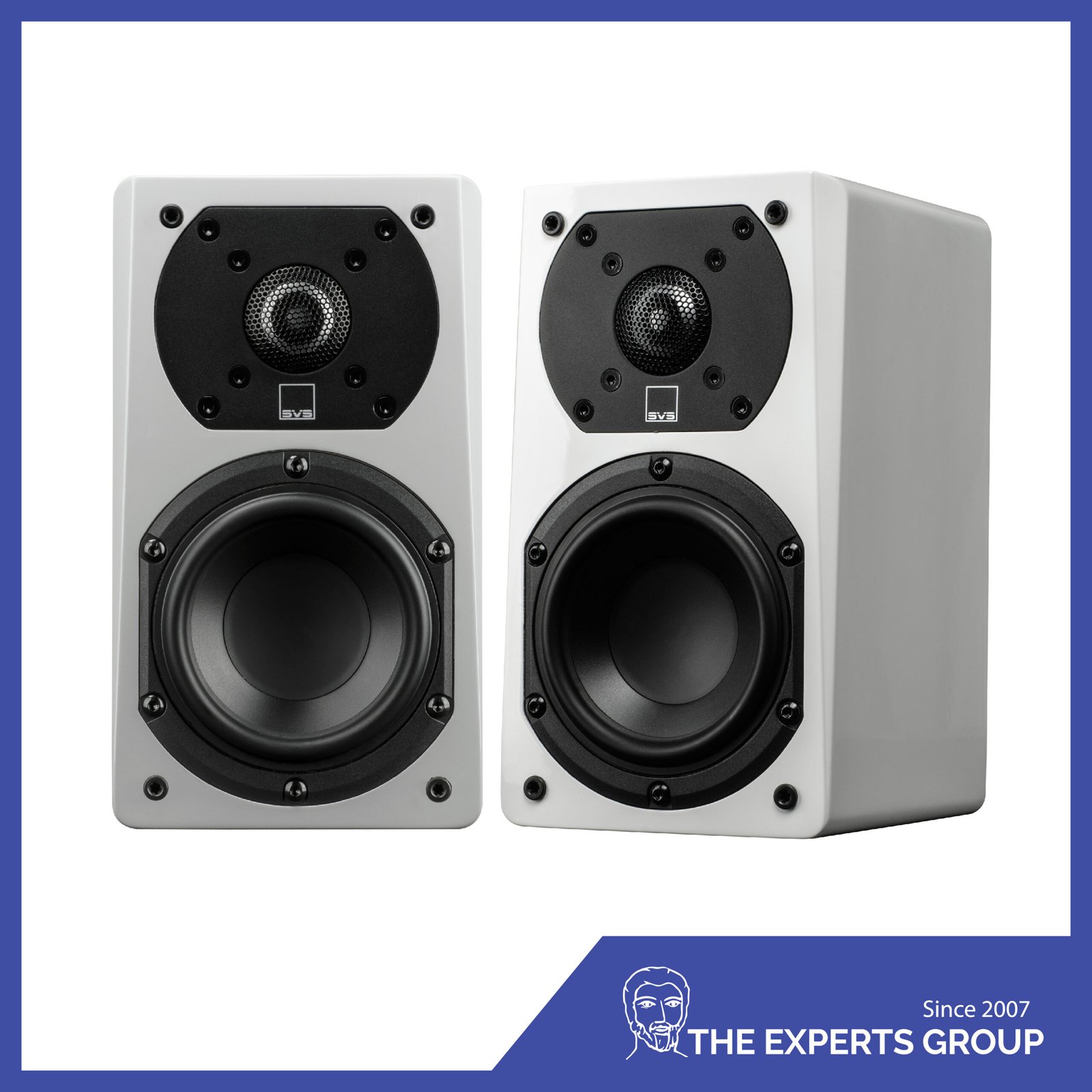

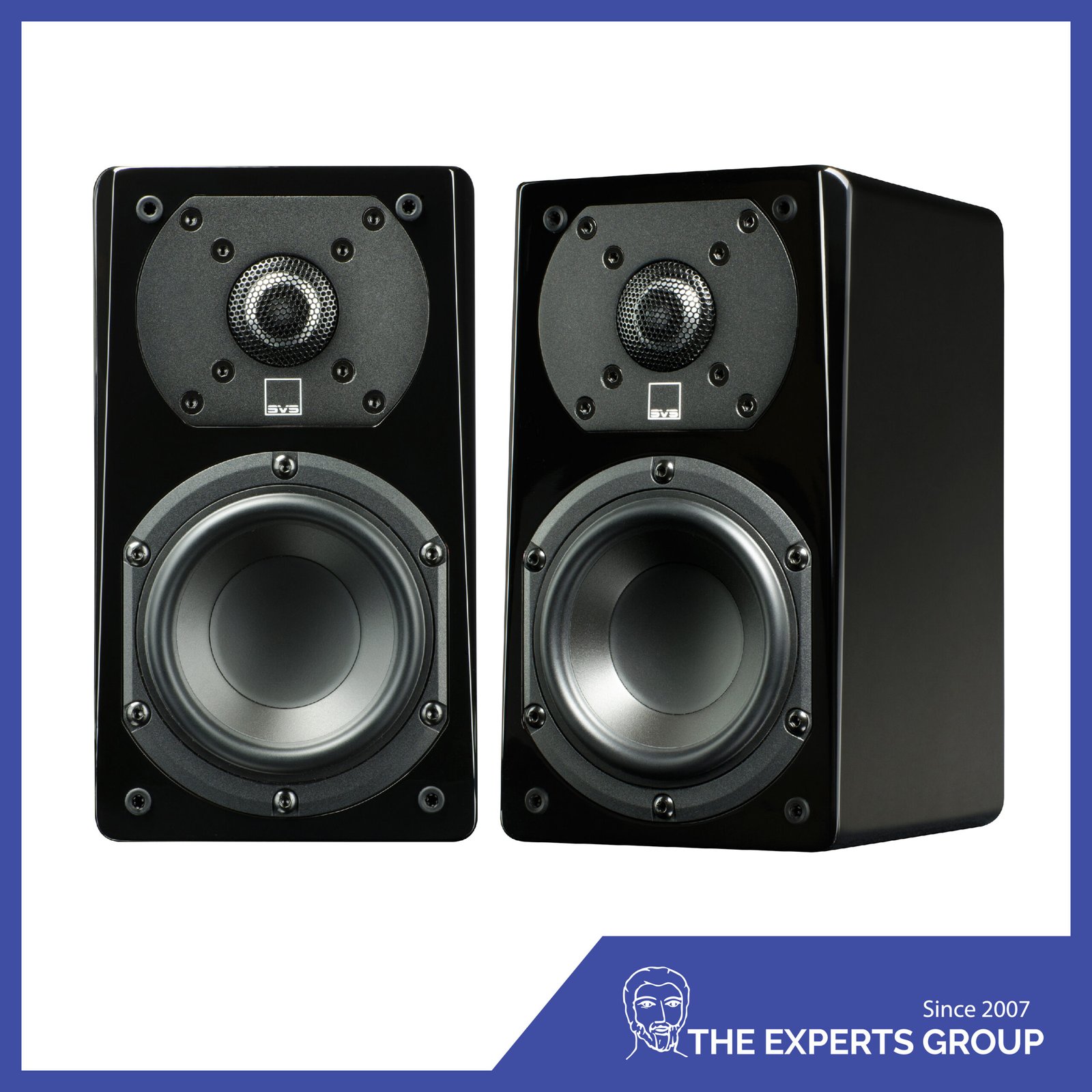

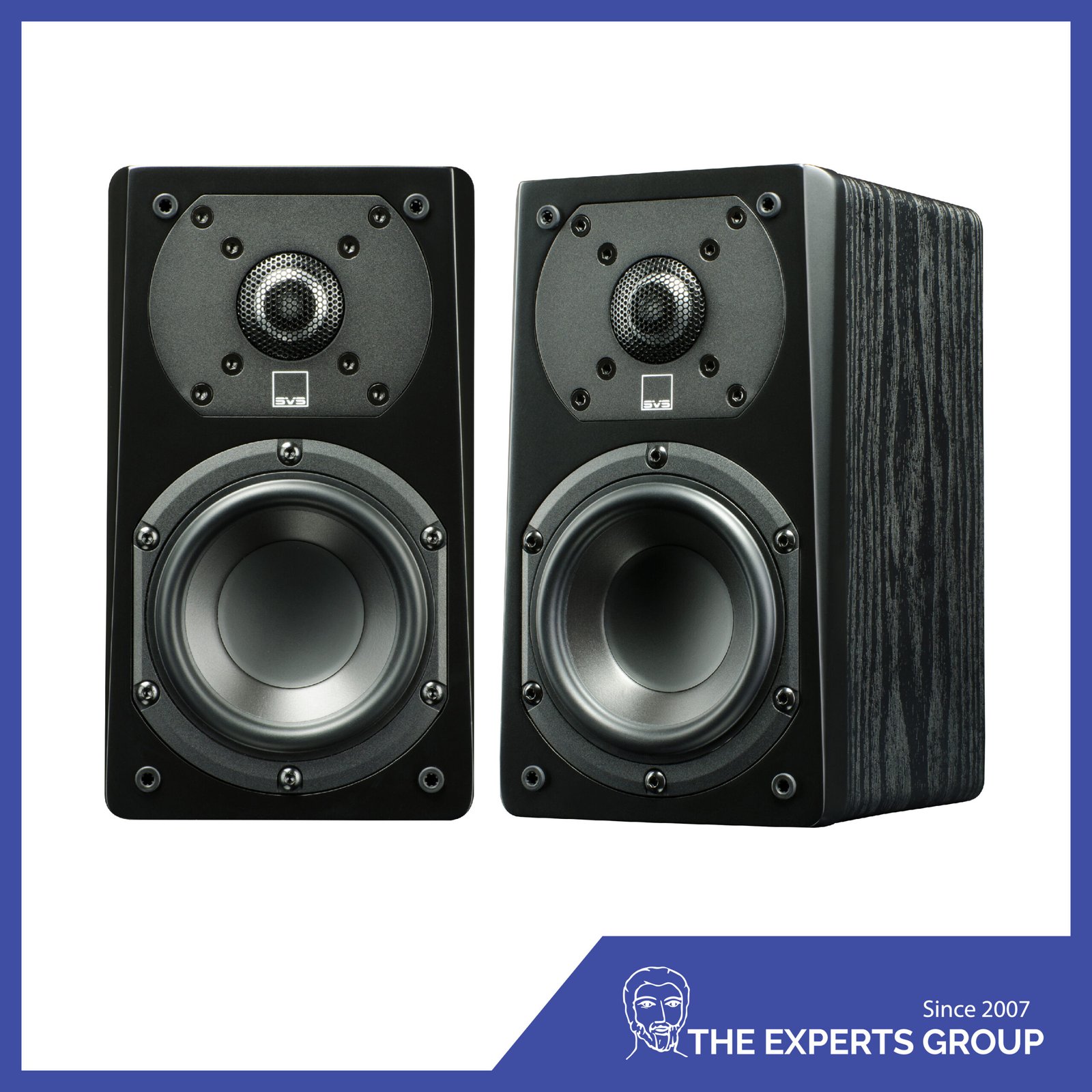

Satellite Loudspeaker
-
Premium Black Ash, Piano Gloss Black, and Piano Gloss White finish options
-
Single set of 5-way binding posts
-
1” wide-flared rear-firing port
-
Cloth grille with pin/cup retention system
-
Elastomer stick-on bumper feet (adds 3mm to height)
-
Keyway bracket for easy and convenient wall mounting (includes extra bumper pads for wall stand-off)
-
Cabinet Dimensions: 8.75″ (H) X 4.9″ (W) X 6″ (D)
-
Overall Dimensions: 8.85″ (H) X 4.9″ (W) X 6.3″ (D) (includes grille and bumper feet)
-
Shipped Dimensions-2 Pack: 11.7″ (H) X 13.9″ (W) X 8.9″ (D)
-
Weight Unboxed: 6.5 pounds
-
Shipped Weight 2 Pack: 14.7 pounds
Driver Specs:

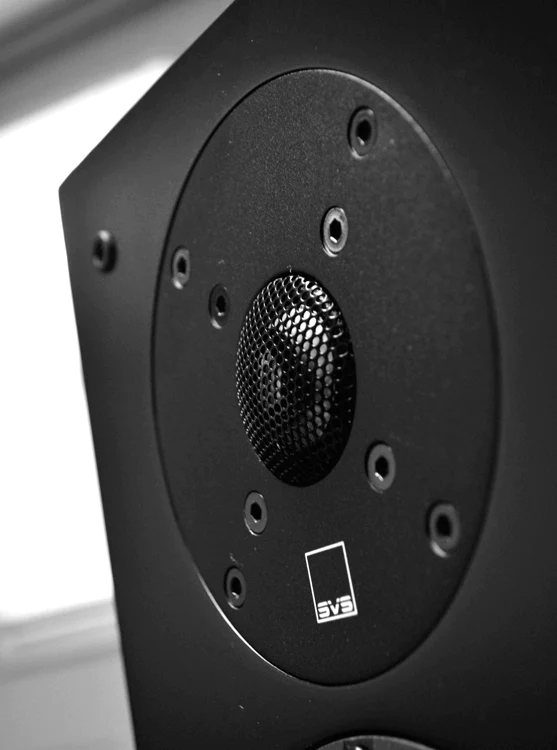

1” Aluminum Dome Tweeter:
-
FEA-optimized diffuser for airy and unveiled presentation
-
Aluminum dome for exceptional transient response
4.5” Midrange Driver:
-
Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
-
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
-
Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
-
Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs:
Crossover:
-

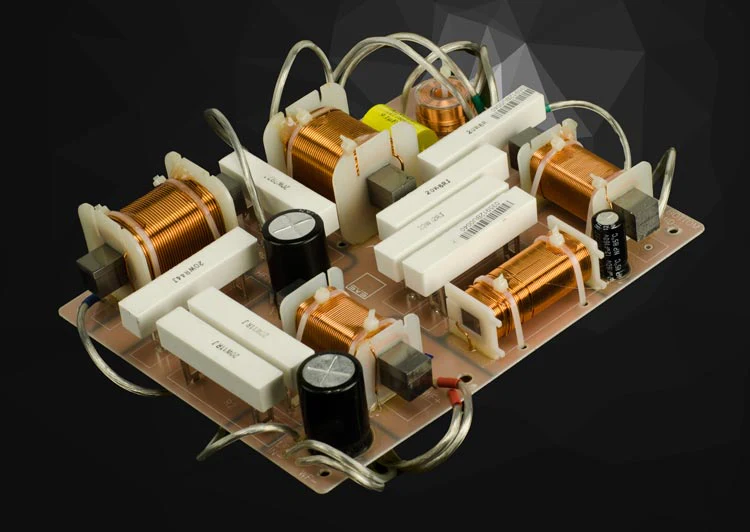

2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
-
Crossover network delivers outstanding phase coherency and time domain behavior
-
Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes)
Cabinet:
-
Acoustically transparent and FEA optimized grilles minimize diffraction
-
FEA-optimized cabinet and bracing eliminates resonances
-

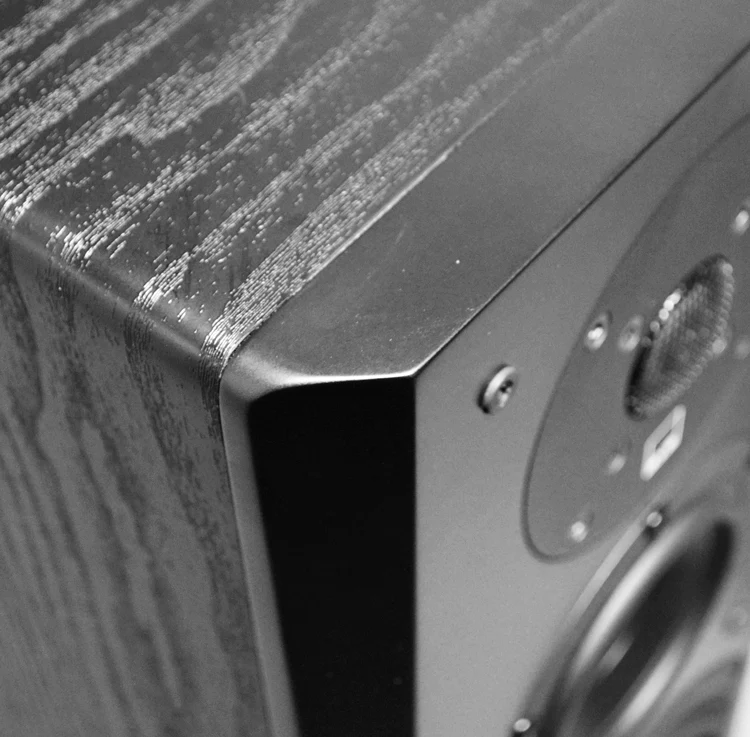

Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
