Driver Specs:
-
Dual opposing 8-inch drivers designed electrically and mechanically in parallel for massive output from and a sonically inert cabinet, and ultra-low system vibration even at maximum output levels
-
Precisely tuned overhung motor configuration for precise woofer control at all drive levels
-
Proprietary injection-molded NBR surround built for extreme-excursion and longevity at reference playback levels
-
Total Excursion (each driver): 24mm Xmax, 37mm Xmech.
-
1100 aluminum single piece cone and junction provide excellent stiffness and a lightweight moving mass with optimized thermal conduction.
-
High-current 4-layer copper voice coil winding minimizes distortion and power compression, while providing effective heat dissipation and tuned magnetics for accuracy at high excursion.
-
Powerful proprietary ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transient speed.
-
Precision machining for motor and narrow tolerance suspension parts maintain control and linearity at full excursion
-
6061 aluminum shorting ring improves linearity of magnetics and reduces distortion and gap inductance
-
High-temperature 5025-H18 aluminum former/bobbin
-
5-inch composite poly-cotton extreme-linear-excursion spider
-
Dual 24-strand plated copper leads
-
High-performance oversized Y30 Ferrite magnet motor
-
Top plate assembly with low carbon 1010 steel completes the driver’s precision magnetic circuit
-
Oversized low carbon 1010 steel U-yoke for maximum cooling
-
Dual 8-inch baskets with FEA optimized powder-coated frames for maximum rigidity, thermal conductivity, and mechanical damping
SVS App Specs:
-

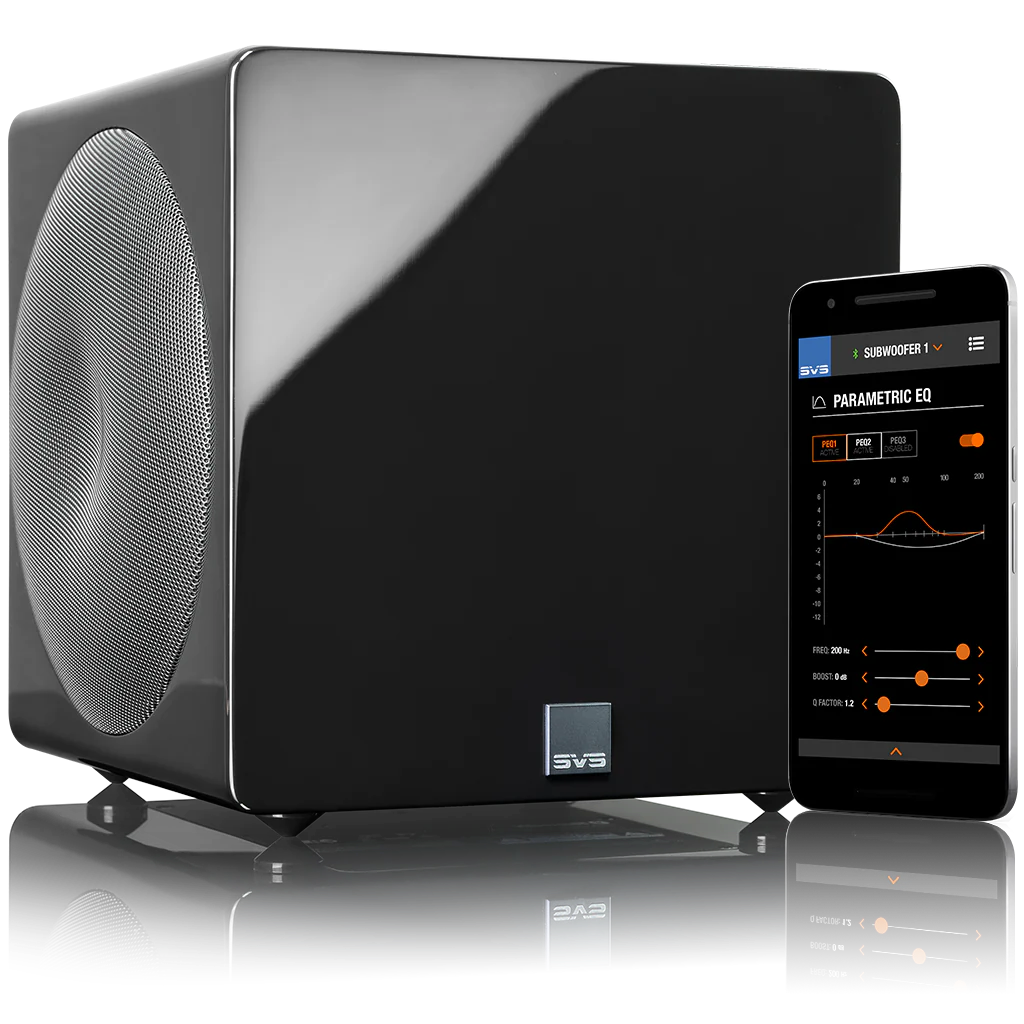

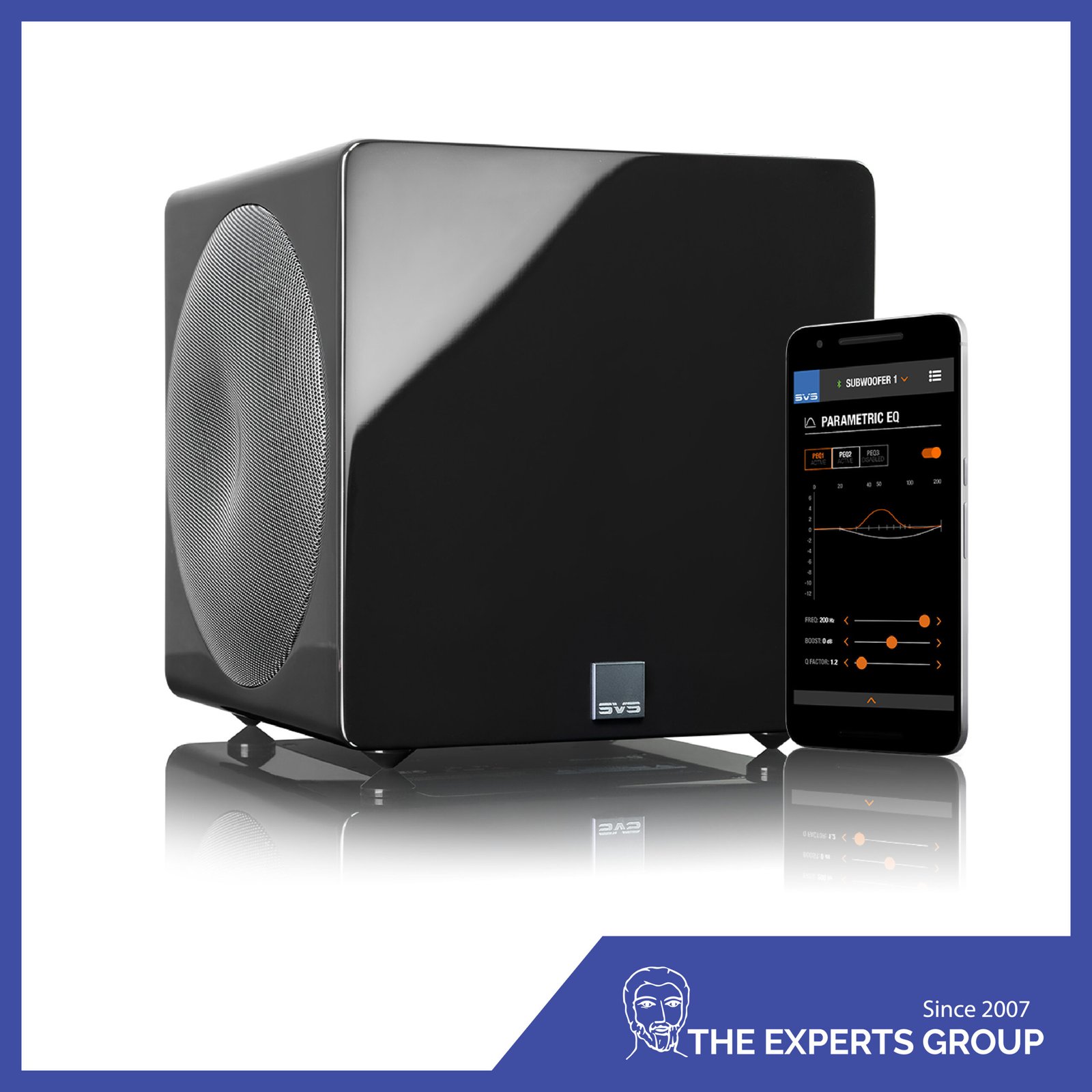

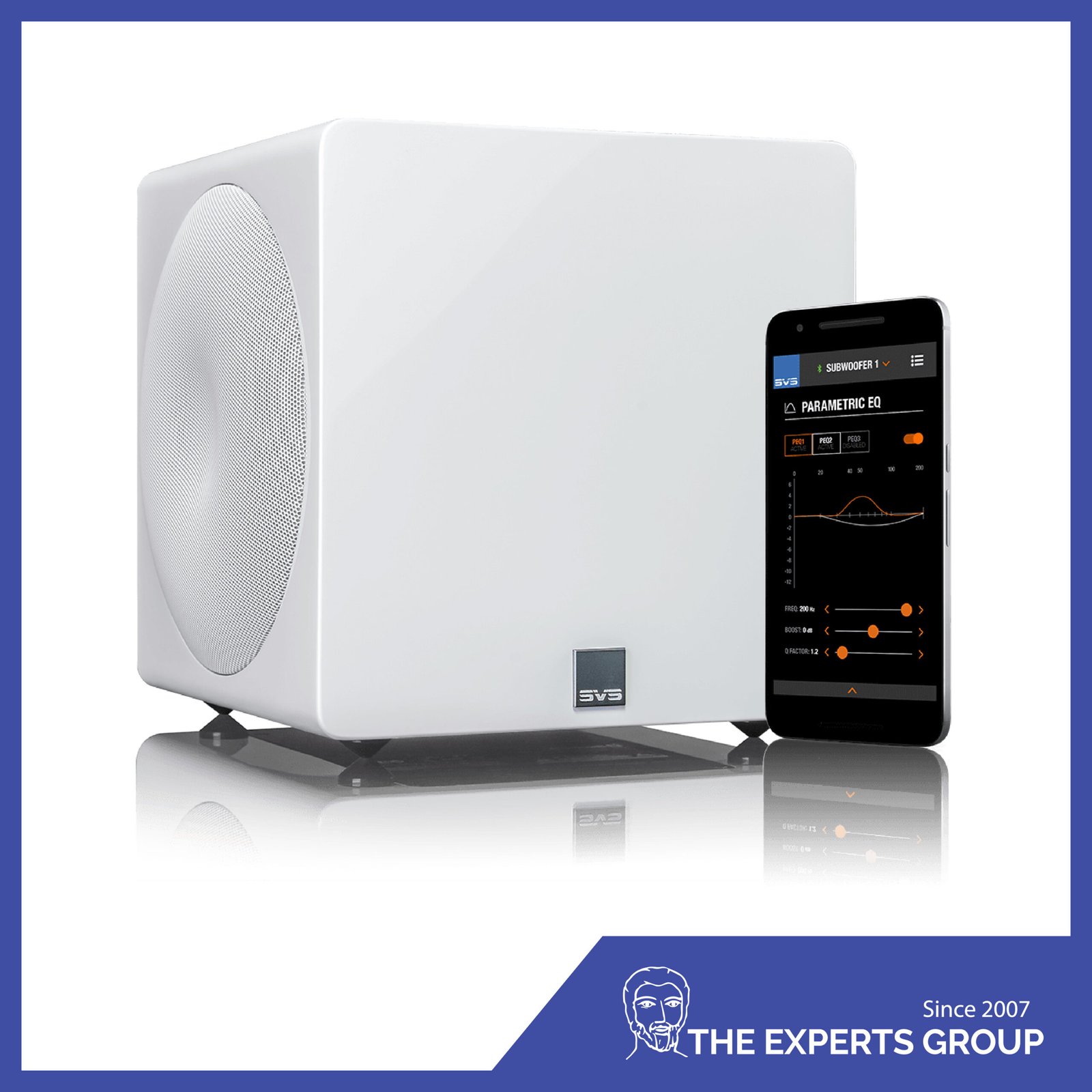

Powerful Bluetooth-controlled subwoofer DSP app works with iOS, Android, and Amazon operating systems
-
Provides easy and convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass-management functions
-
Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat
-
Bidirectional-feedback shows adjustments in real time on both app and subwoofer rear panel
