Magellan is the essence of TRIANGLE’s know-how, a strive to obtain the highest possible results, an exclusive product in which every element has been
carefully chosen.
Made of the finest materials selected with utmost attention, this 40th anniversary edition carries on this fundamental approach. Combining elegance and
technology, it is a continuation of TRIANGLE’s investment in favor of a target of pleasure and emotion.
FRENCH ELEGANCE
The timeless design of the MAGELLAN speakers embodies TRIANGLE’s definition of aesthetics along with French elegance.
The minimalist design of these speakers emphasizes their precision. The MAGELLAN range offers this essential ability that allows the object to contribute to the refinement of the living space without becoming tedious.
AN AMAZING IMMERSIVE SOUND
The MAGELLAN 40th anniversary speakers are extremely accurate, every note ringing true.
Their wide sound spectrum, combined with their remarkable power handling, ensure the faithful reproduction of broad musical nuances. With this product, you will enjoy a unique and exceptional moment that never ends.
THOROUGH FRENCH CRAFTSMANSHIP
The development of such exceptional speakers requires total control from design to manufacturing.
Each part is made of high-quality materials, then checked for the slightest imperfection. Only an in-house manufacturing process ensures the high level of excellence required to produce the MAGELLAN speakers.
THREE LUXURIOUS FINISHES
The cabinets are covered with elegant precious woods carefully selected and assembled according to their grain.
Enhanced by multiple coats of lacquer, the cabinetry of the MAGELLAN 40th anniversary is available in three luxurious finishes.
THE MAGELLAN REVIVAL
Essence of TRIANGLE’s industrial engineering, the MAGELLAN 40th anniversary edition features numerous optimizations and the latest research work conducted by our dedicated and passionate team of engineers.
Solid wood cabinet
The design of the enclosure is crucial to the sound quality, and the cabinets of the MAGELLAN 40th anniversary edition have been carefully designed to ensure full stability.
The curved shape of the cabinet is made of successive layers of high-density fiberboard, each 3mm thick, thus excluding any internal parallels.
This cabinet is characterized by a specific architecture resulting from a thorough study of the vibrations and micro-deformations of the cabinetry. Reinforcements
have been placed strategically to make sure the cabinets are rigid enough to withstand the powerful vibrations generated by the drivers at high volume levels.
Tweeter TZ2900PM-MG
Several years of research and development have led to the design of the new tweeter TZ2900. In this limited edition, TRIANGLE introduces a magnesium alloy dome for a better transition to the midrange driver. Combined with the patented horn tweeter technology, this new transducer brings out all the details of the upper harmonics.
LHS 2 system
The MAGELLAN 40th anniversary edition speakers are equipped with a proprietary cooling system called LHS 2. A heat sink consisting of a heat transmission ring covers the back of the motor. This heat sink allows an optimal heat transmission to the external structure of the driver, thus improving the power handling of the transducer.
INTERNAL COMPONENTS
The internal components chosen are proof of this uncompromising approach applied
only to exceptional products.
Crossovers
Assembled in our production facility, the crossovers use components selected for their remarkable audio quality. The capacitors are developed in collaboration with the French company SCR Audio, using large section air core coils only, bass and midrange/treble boards are physically separated. Every effort is made to achieve the best result possible.
Audioquest cable
Developed in partnership with the global specialist AUDIOQUEST,
the internal wiring consists of a carefully balanced blend of long-grain
copper (LGC) and high-purity perfect surface copper (PSC). The output is very clear, the listening experience unobstructed, with a dynamic but controlled bass.

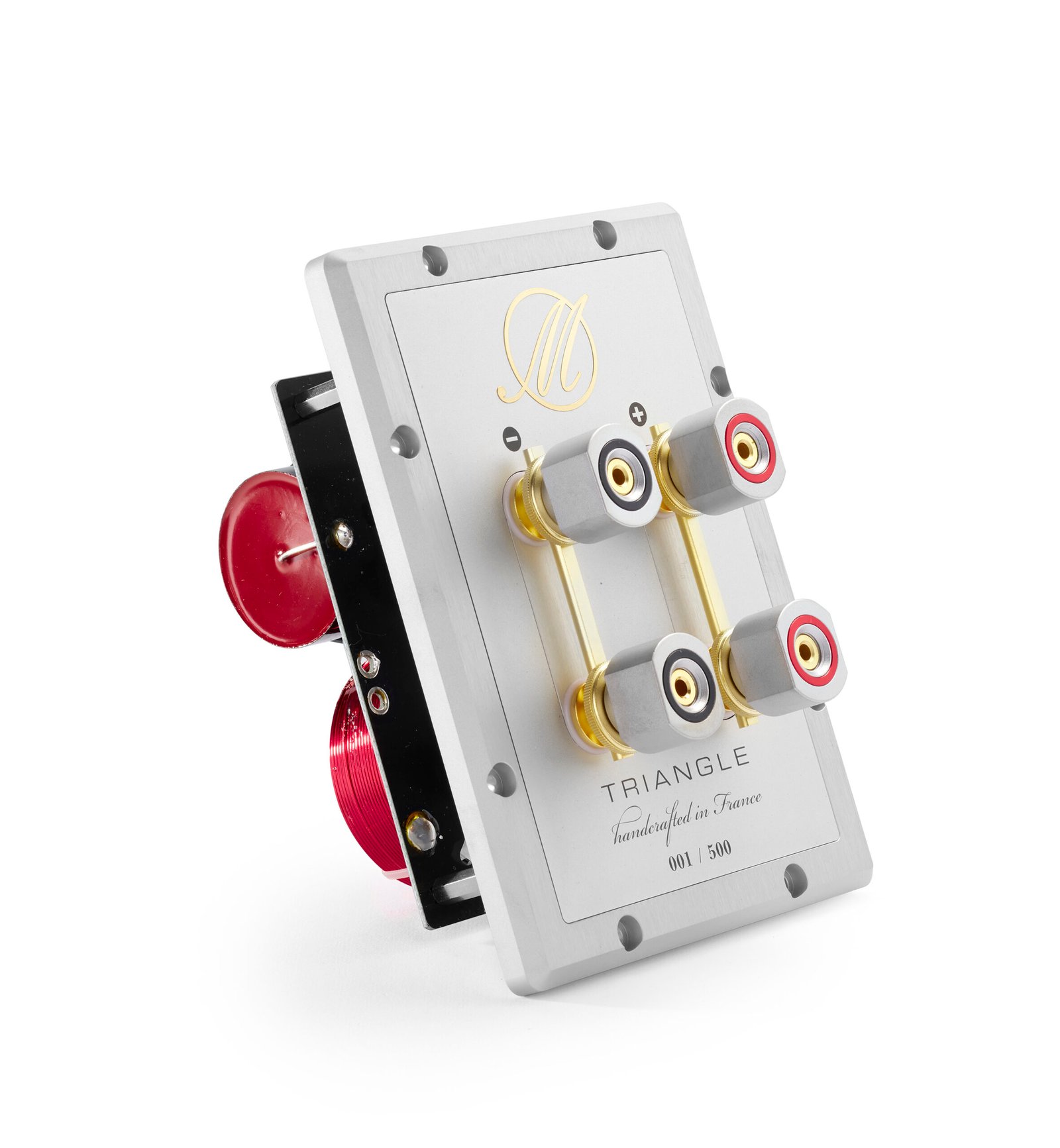

Terminal
Manufactured in a block of die-cast aluminum, the connection plate has four elegant terminals in pure copper, ensuring a perfect electrical conductivity. The terminals are designed to accommodate a bare audio cable, mounted on banana plugs or forks. With independent crossover circuits, the bi-amplification will enhance your installation.

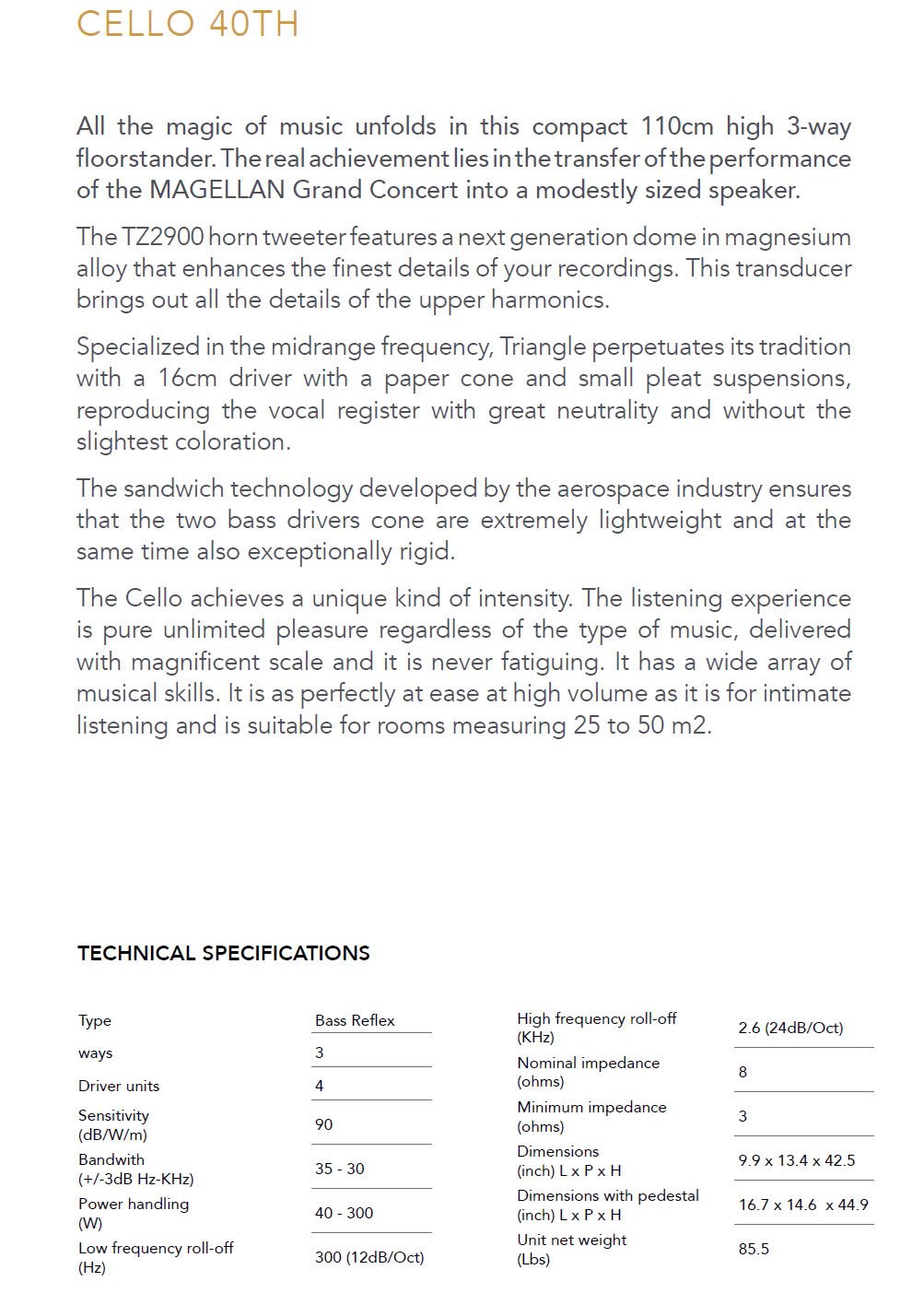

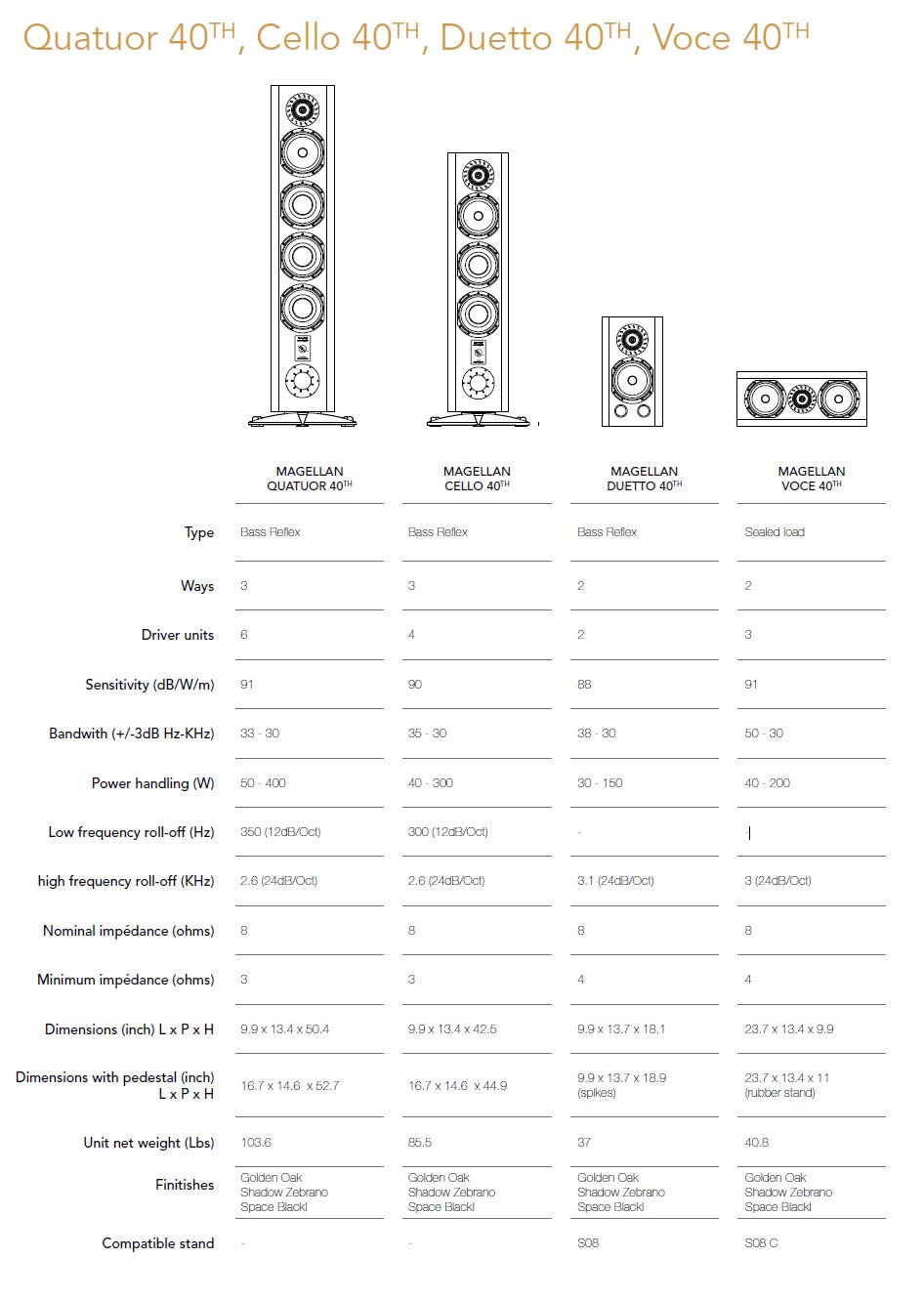

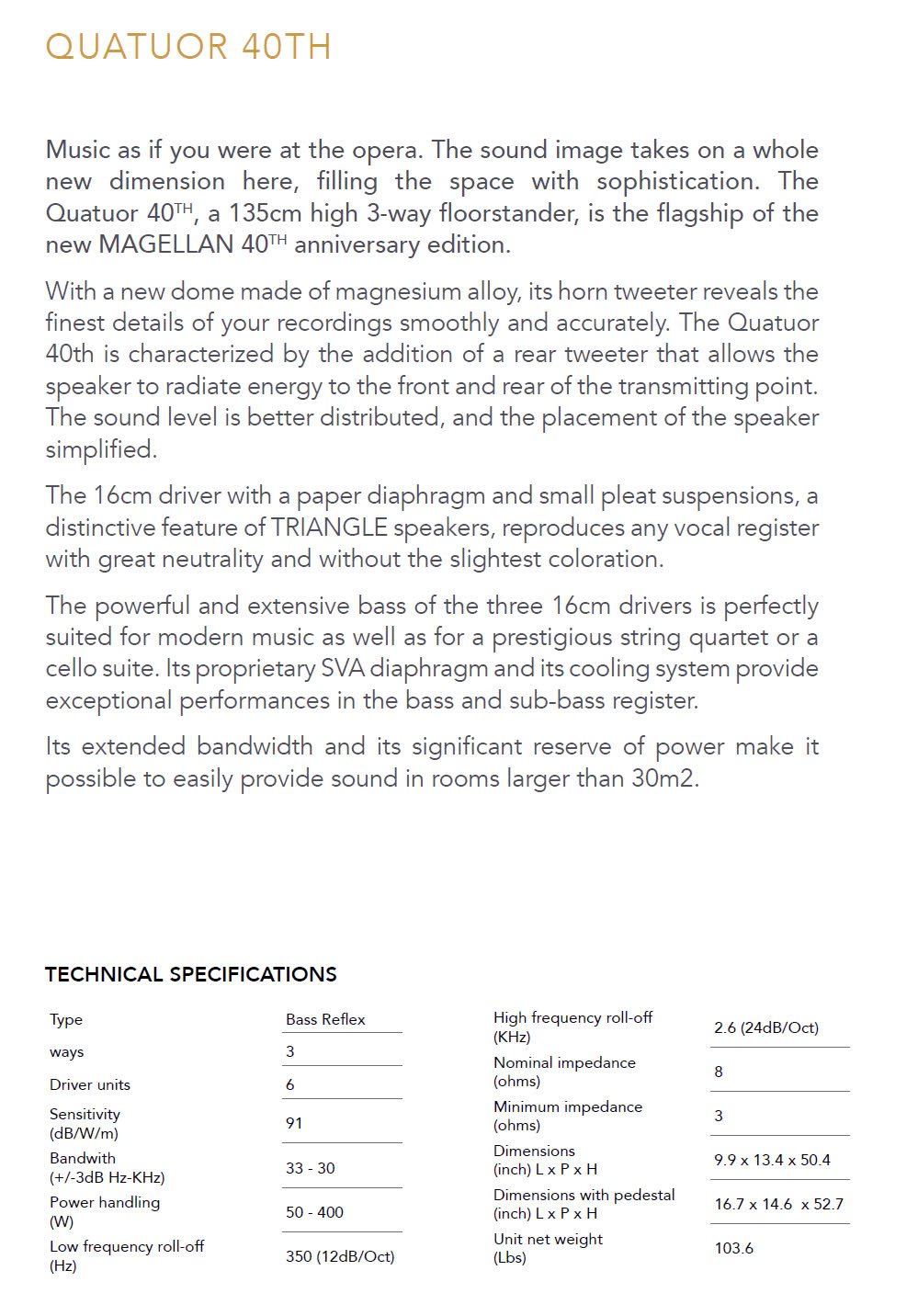

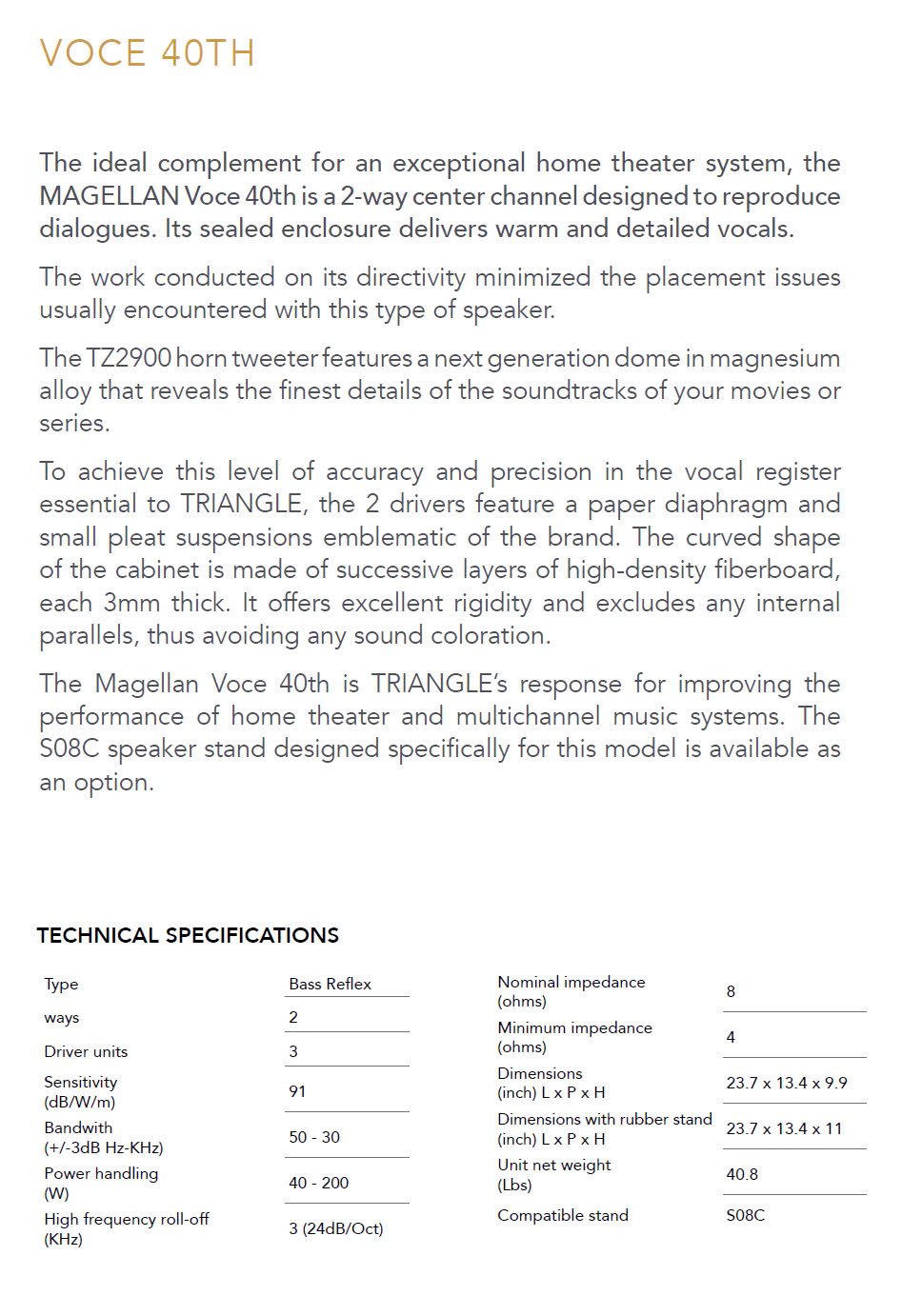

MAGELLAN 40TH Technical Specifications - Speakers

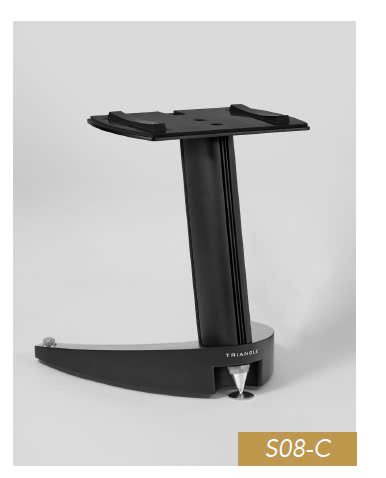

MAGELLAN 40TH Technical Specifications - Accessories
